FEATURES:

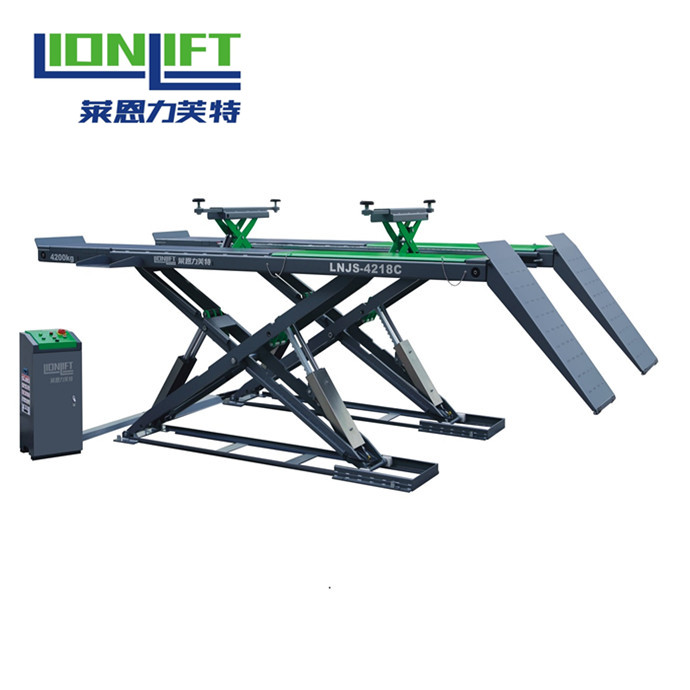

1.Super low platforms(165mm minimum height)and ramps meet various chassis height of vehicles,small space to take and installed directly on the ground.

2.6mm whole board laser cutting, whole board bending benches extend the platform to 4500mm to match various vehicles.

3.Double tandem synchronous balanced cylinders and six cylinders driving ensures synchronous lifting  of platforms,the 4.2T lifting capacity can match various vehicles repair requirement.

4.The lift is equipped with secondary lifting trolley, moving flexibly,controlled by manual button and remote. Extended side slide adapts to vehicles of various wheelbases. The lift can be used for SUV and business vehicles.

5.The use of mechanical safe lock, explosion -proof valves and self-lock of hydraulic systems ensure a safe work.

6.Integrated PLC computer controller features self-testing function, offering guidance in eliminating faults and ensure safe voltage.

7.Imported oil seals from Italy flat combination valve block structure and dual oil circuits can also be quickly leveling,avoiding oil leakage inside.

8.Imported oil seals from Italy prolongs the life of the cylinder. Imported manual oil-input valves from Italy avoid oil leakage inside, and no need to fill oil frequently for rebalance.

9.Maximum limit mitigates abrasion of hydro-cylinder and overload of hydraulic systems, which prolongs usage life of the machine.

10.Decline buzzing alert and light alert reduce the possibility of safety accidents

11.The surface adopts the shot blasting, degreasing, phosphating,static powder coating, so it is of anti-erosion, good adhesion and high hardness.

12.Double deck steel oil pipe achieves good explosion-proof performance.

13.With high quality international-standard steel as raw materials, the equipment has bigger self-weight compared to homogeneous ones. 28mm manganese plate holes of front arms are made with CNC sawing machine to ensure the consonant quality.

14.120% dynamic loading test and 150% static loading test comply with the CE standard.
