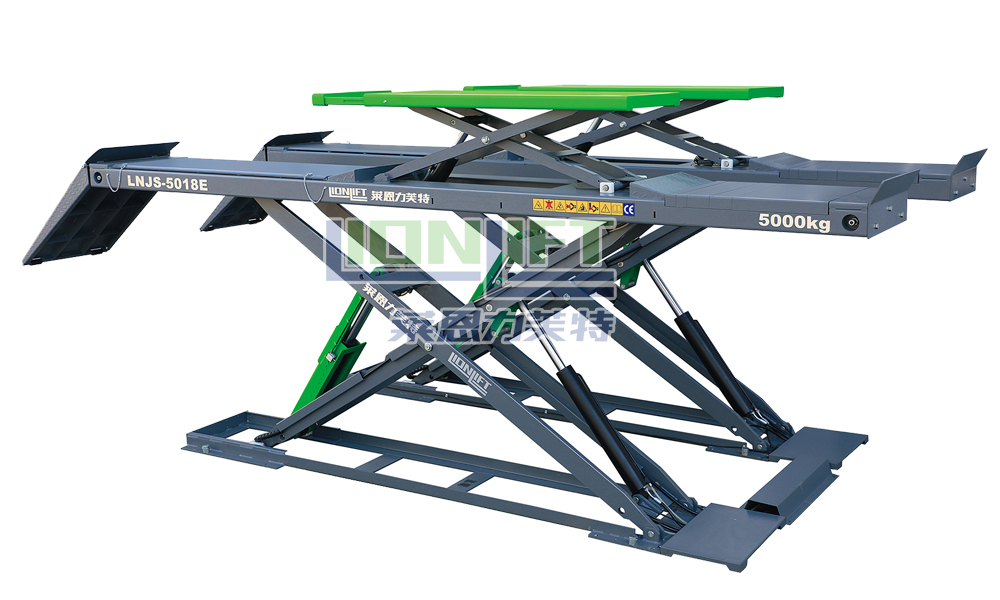

1. Low profile platforms (185mm minimum height) and ramps meet various chassis height of vehicles’ taking small space’ installed directly on the ground.

2. Platform ( 4500mm long ) made from bent whole steel plate ( 6mm thickness ) laser cut’ is suitable for wider range of vehicles.

3. Double oil circuit’ series connection synchronous four oil cylinder driven’ with lifting capacity of 5.0t’ meeting repair needs of various luxury cars.

4. The sub lift platform can be pulled out and extented to 1845mm’ and the side sliding plate is lengthened. It is suitable for various wheelbase cars and can lift SUV and commercial vehicles.

5. Three level safety protection: mechanical safety lock’ oil pipe explosion-proof valve and hydraulic system self-locking to ensure safety of people and vehicles.

6. Integrated PLC computer controller’ with self-test function’ can guide troubleshooting and safe voltage control.

7. Sealing rings are imported from Italy. With the combined valve block structure’ three oil circuits can be quickly leveled too.

8. The maximum limit reduces wear of the oil cylinder and overload of the hydraulic system’ and prolongs the service life of the oil cylinders.

9. Down buzzer and light warning reduce possibility of safety accidents.

10. The surface treatment adopts shot blasting’ degreasing’ phosphating and electrostatic powder spraying technology’ with strong paint adhesion’ anti-corrosion and wear resistance.

11. Made of international steel materials’ the equipment has big self weight. The manganese steel plate shear arm holes are processed with NC boring machines’ ensuring high consistency.

12. 120% dynamic load test.
